DMF-ZM直角带螺母电磁脉冲阀

  • 产品特点:
    产品概述 电磁脉冲阀专为除尘设备的应用而设计,具有高流量、长寿命、瞬间开关的阀门,由电磁先导控制其开通和关闭,由于的设计,使阀门具有良好的流体性,采用丁晴橡胶膜片,故而具有压力损失低,OUTANS欧顿公司多年研发经验使得产品更加成熟,了电磁脉冲阀脉冲电信号时快速开启和完成脉冲后的迅速关闭。 高纯度铝合金压铸阀体,特殊夹物组成的电磁脉冲阀膜片,使得膜片具有高的拉伸强度、抗老化性和较低的磨损量,使得OUTANS欧顿公司电磁脉冲阀喷吹寿命高于100万次或三至五年使用不损坏。
  • 咨询热线:139-6122-3222
  • 产品详情

产品名称:DMF-ZM直角带螺母电磁脉冲阀


 产品概述

  电磁脉冲阀专为除尘设备的应用而设计,具有高流量、长寿命、瞬间开关的阀门,由电磁先导控制其开通和关闭,由于的设计,使阀门具有良好的流体性,采用丁晴橡胶膜片,故而具有压力损失低,OUTANS欧顿公司多年研发经验使得产品更加成熟,了电磁脉冲阀脉冲电信号时快速开启和完成脉冲后的迅速关闭。

   高纯度铝合金压铸阀体,特殊夹物组成的电磁脉冲阀膜片,使得膜片具有高的拉伸强度、抗老化性和较低的磨损量,使得OUTANS欧顿公司电磁脉冲阀喷吹寿命高于100万次或三至五年使用不损坏。

   电磁脉冲阀线圈采用高于国标级绝缘注射在防护等级为}P65全灌封,全铜漆包线,圈数高于标准,电磁脉冲阀600万次通电吸合不损坏,电磁线圈可以在脉冲阀芯上360“旋转,接线盒可以4 x 900旋转安装,可防止暴露在露天时雨水进入,大方便了不同角度安装。

产品介绍

    DMF-ZM型电磁脉冲阀输入口与输出口夹角为90°称之为直角阀,其输入、输出口为外螺纹,并配备压紧螺母,分气箱(气包)上的短管或喷吹管直接插入阀的输入、输出口的锥形密封圈内,并拧紧压紧螺母,安装方便、气流通畅,能提供理想的清灰气脉冲,适用于各种过滤单元的清灰。

    DMF-ZM type electromagnetic pulse valve input port and an output port angle is 90 DEG angle valve, the input and output for external thread, and is equipped with a pressing nut, gas tank (gas) on spools or blowing Z directly inserted in the valve of the input and output of conical sealing ring and tighten nut,convenient installation, smooth airflow, provides an ideal cleaning Qimai,applicable to all kinds of filter element cleaning.

使用技术指标

工作压力Operating pressure0.2~0.6MPa
工作介质Working medium清洁空气Clean air
电压VoltageDC24V      AC110V   AC220V(士10%)
电流Current1A          0.46A    0.23A
温度等级Temperature level1.常温-25℃~80℃(-13℉~176℉)  2.高温-25℃~23℃(-13℉~446℉)
空气相对湿度Relative humidity of  air空气的相对湿度≤85%
防护等级Degree of protectionIP65
膜片寿命Diaphragm life高于100万次,或3-5年

备注:1.电磁脉冲阀均可装消音器。 2.电磁脉冲阀可选配有认证的防爆线圈。

材质说明

阀体BodyADC12铝合金  ADC12 aluminum alloy
卡簧Clamp spring304不锈钢 304stainless steel
先导组件Pilot component430FR不锈钢等材料  430FR stainless steel,etc
膜片Diaphragm丁睛橡胶/氟橡胶Nitrite rubber/fluororubber(high-temperature valve)
弹簧Spring304不锈钢  304 stainless steel
紧固体Fastener302不锈钢  302 stainless steel

   膜片采用成品膜片,质量与进口媲美,超强的拉伸性,每片膜片都经过严格检测后方可进入装配线、装配后每一个成品阀进行检测,各项指标全部合格方可出厂。

  Diaphragm with the top end of the film, the quality and import comparable, super tensile, each piece of the film are strictly detectedbefore entering the assembly line, the assembly after each finished product valve testing, the indicators are all qualified before the factory

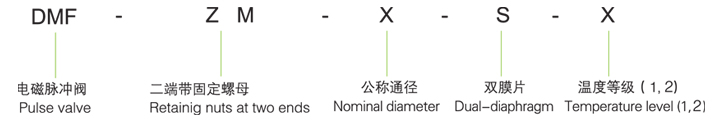

型号含义

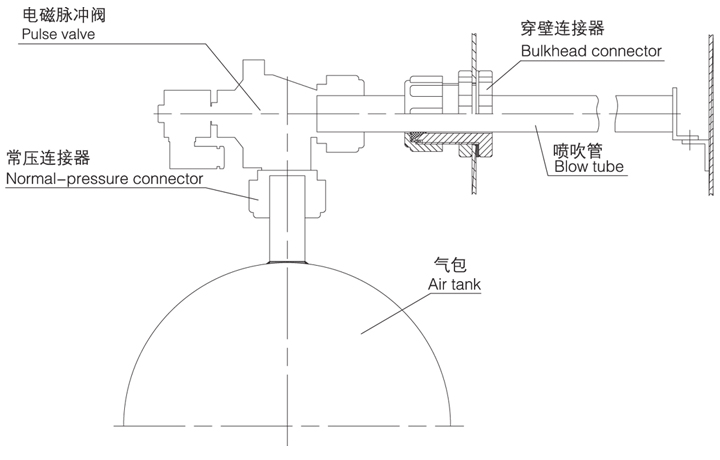

安装示意图

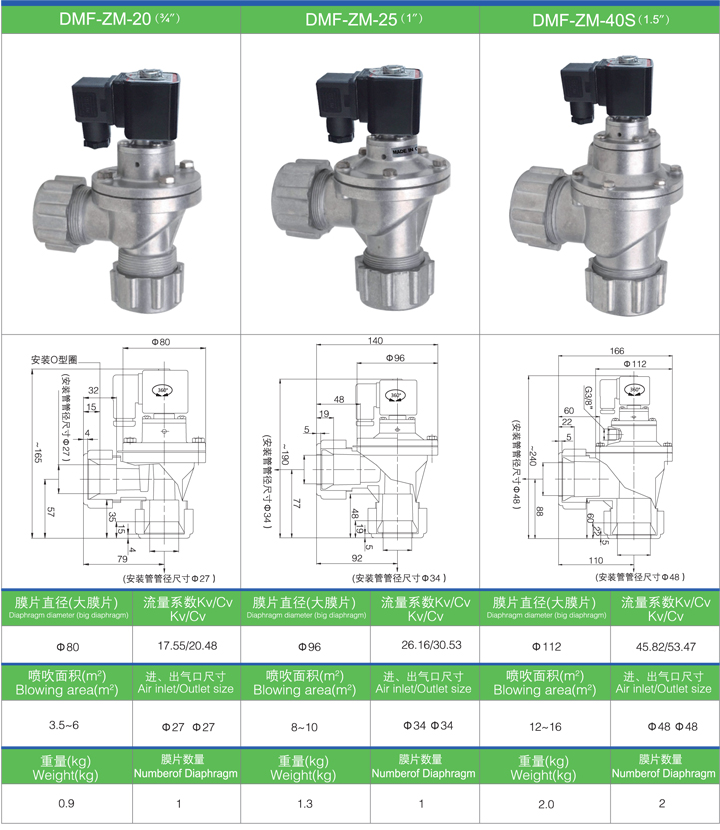

规格尺寸

安装方法提示

     1、电磁脉冲阀的喷吹气源由气箱(气包)提供,分气箱有方形和圆形二种,圆形分气箱耐压力效果较好,使用淹没式电磁脉冲阀时,方形分气箱安装比较方便。

     2、分气箱的截面积和长度决定储气容积,其容积应满足该组脉冲阀每次喷吹后,箱内剩余压力不低于喷吹前压力的50%,进气管内径决定向分气箱充气速度,其速度应满足该组脉冲阀每次喷吹后10s内使箱内气体恢复至喷吹前压力。

     3、脉冲阀应安装在分气箱的上部或侧面,安装侧面时脉冲阀输入端中心不应低于分气箱侧面中心线以下,脉冲阀不可安装在分气箱底部,同时脉冲阀输出端应安装处于水平或向下位置,不可安装向上位置。

     4、喷吹管的喷吹孔应小于18左右,开孔为:8-32mm(远小近大),喷吹管离布袋口200-400为宜。

电磁脉冲阀常见问题

使用阶段
Stage of use
故障现象
Fault
原因分析
Cause analysis
排除方法
Eliminating method
安装调试中
Installation and
Commissioning
所有阀无法打开,但先导部分
有动作
Not all the valves can be
opened,but the pilot part
is running
检查气包压力是否过低
Check whether the air
tank pressure is
too low
排查漏气
Check and prevent air leakage
某些阀不工作,其他阀正常
Some valves cannot run
while others can
检查阀的线路连接及线圈
Check the line connections
and sole-noids of the valves
更换配件
Replace relevant parts
所有阀无法关闭,有漏气,
气包压力无法建立
Not all the valves can be
closed;there is air
leakage; the air tank
pressure cannot be
established
阀的进气口与喷吹口相反安装
The air inlets and air
outlets of the valves are
reversely Installed
重新安装
Install the valves again
某些阀无法关闭,有漏气
Some valves cannot be
closed, there is air
leakage
有杂质吸附在膜片上,动铁芯有卡死现象
There are foreign matters
on the diaphragms; the
armatures  are seized
清洁膜片,检查膜片是否完整,
检查动铁芯及气塞
Clean the diaphragms and
check whether they are
complete; check the armatures
and the air plugs
使用过程中
Use
阀关闭缓慢
Valve closing is slow
膜片节流孔受堵
The diaphragm orifices
are blocked
疏通膜片节流孔
Unblock them
某些阀漏气,膜片关不死,
阀常开
Some valves leak, they
often open,their diaphragms
cannot be closed com-pletely
有杂质吸附在膜片上,先导损坏,动铁芯有卡死现象
There are foreign matters
on the diaphragms; the
pilot parts are dam-aged; the armatures are
seized
清洁膜片,检查膜片是否完整,
检查动铁芯及塞等,及时更换配件
Clean the diaphragms and check
whether they are complete; check
the armatures and the air plugs;
replace relevant parts promptly
线圈发热,烧毁
There is solenoid heating
or burning
长时间通电
The valves have been
powered on for a very long
time
检查控制系统的工作状况
Cheak the operating status of
the control system
有电压,但阀不动作
There is voltage but the
valves cannot run
膜片损坏或节流孔受堵
Diaphragm is damaged, pilot
opening is blocked
及时更换配件
Replace relevant parts promptly
环境温度低,阀有漏气或无法打开
The ambient temperature is
low; the valves leak or cannot
be opened
环境温度过低,阀内有结冰现象
Ambient air temperature too
low valve intelnal frozen
注意保温
Keep a properly high temperature
